borehole filling machine

The borehole plugging machine, a robust excavator attachment, is the heart of the BOROPLAST process. The machine fills boreholes layer by layer with compacted elastoplastic sealing material. Powerfully driven by a push chain, the steel plugging piston enters the borehole and compacts the material in individual layers – thus creating layer-by-layer compaction within the borehole. Quality, layer by layer.

We rent the machine for the duration of the construction work and supply the sealing material specially developed for this process.

Closed building material

We supply the best sealing material you can imagine for the solid, layered compaction of borehole backfilling. Years of research and development by leading geo-research institutes have resulted in the material that makes the design and formulation of BOROPLAST so reliable: BOROPLAST delivers a sealing element that can withstand long-term, cyclically dynamic loads, is installed without voids, and safely and completely fills the borehole.

The BOROPLAST sealing material is ecologically sound, especially with regard to water law, completely safe, approved by the most environmentally critical authorities and is virtually CO2 free.

We deliver BOROPLAST building materials to the construction site or your central warehouse as needed.

Digital Documentation

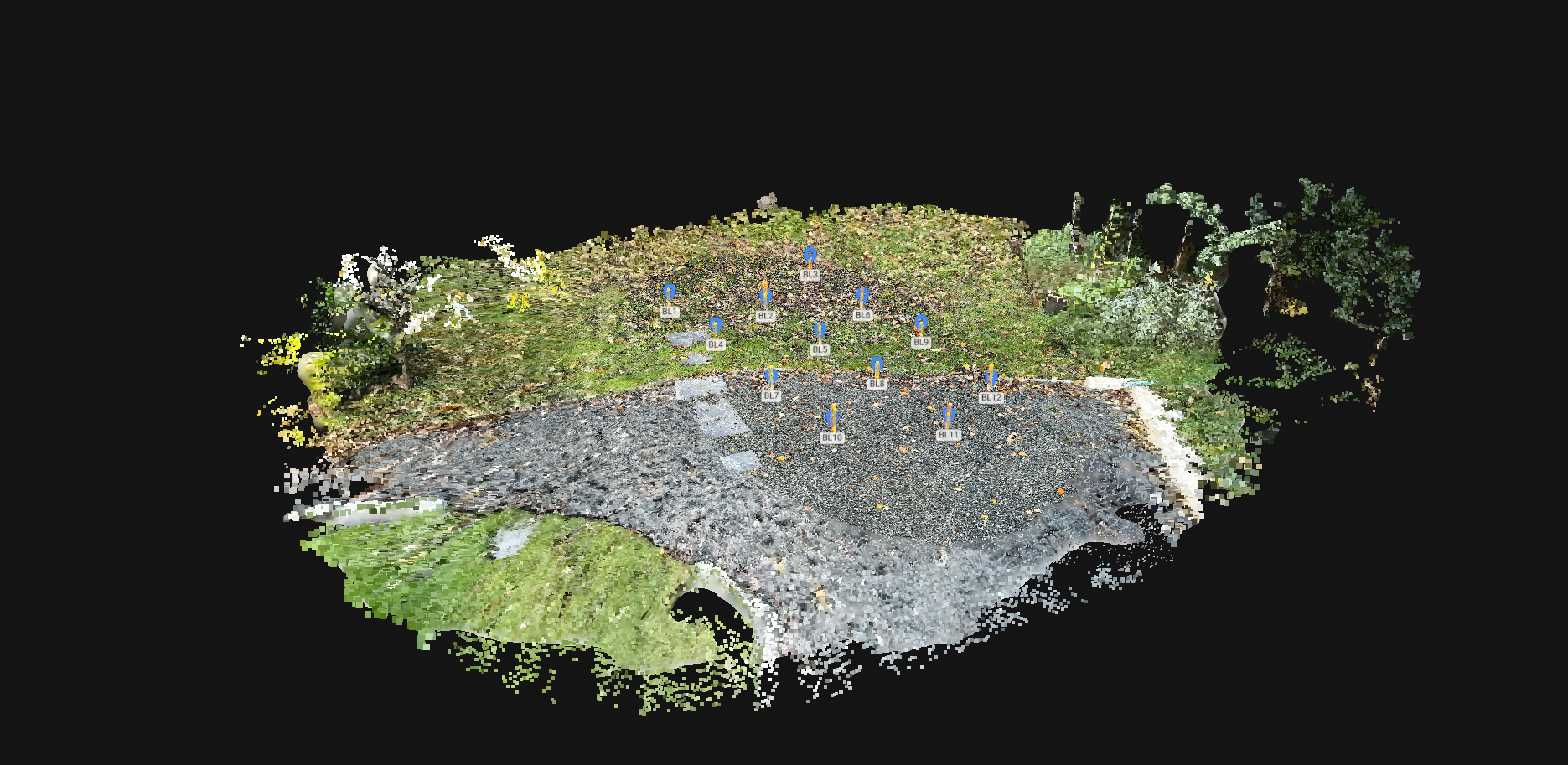

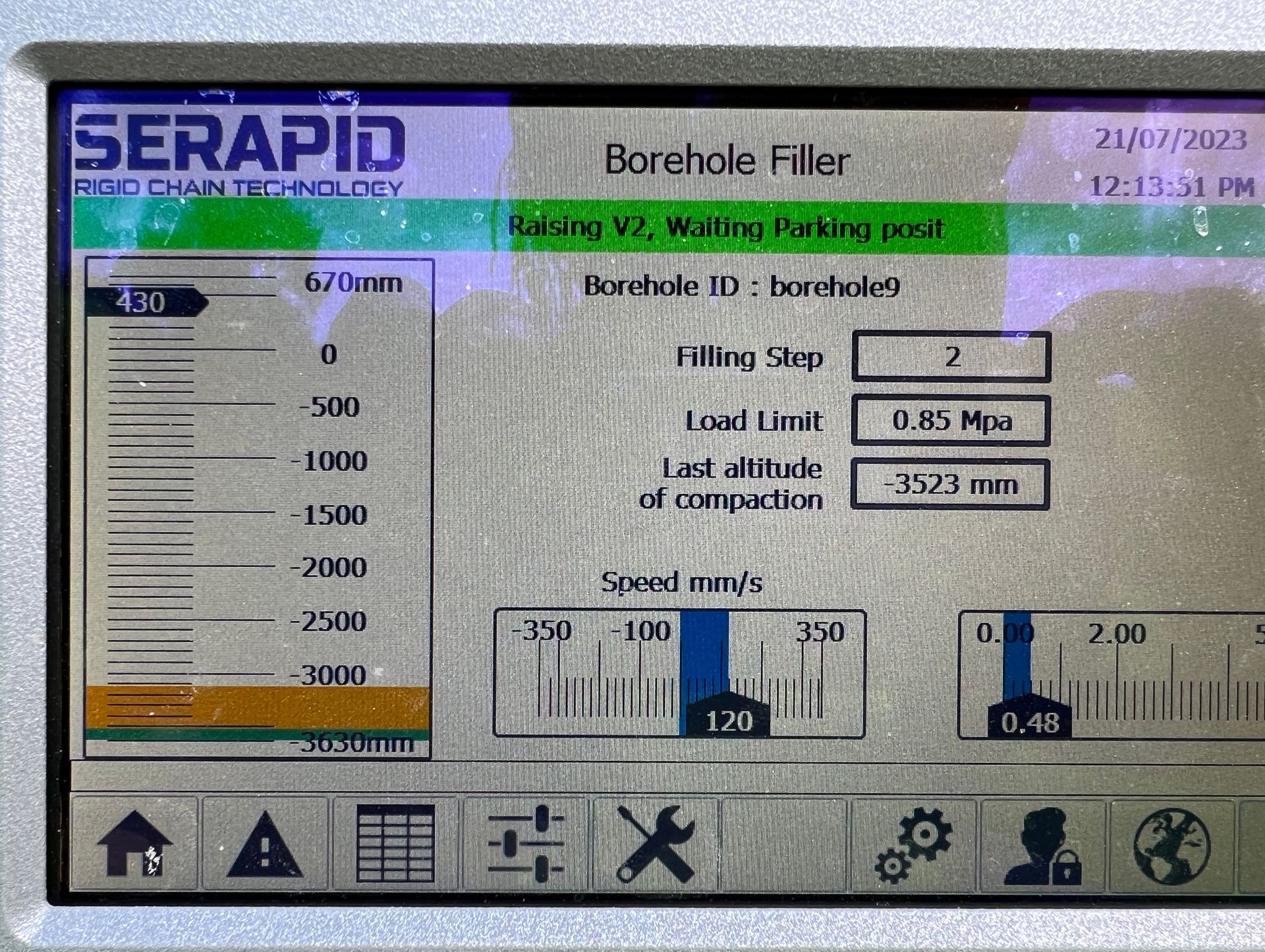

The BOROPLAST machine, controlled by SIMATIC, delivers highly accurate data on every step of the layered backfilling process. Backfilling depth, layer thickness, and contact pressure are digitally documented with meticulous precision for each layer. The GeoLOG app, integrated into the process, fully and accurately captures the properties of the resulting sealing element. The location of the borehole and the surrounding construction site are recorded as a 3D model within the GeoLOG app and precisely located using photogrammetry.

The GeoLOG app is the ideal assistant for planning the construction site, recording and surveying the drilling points, documenting the work performed and the subsequent digital documentation, verification and billing of the work.
